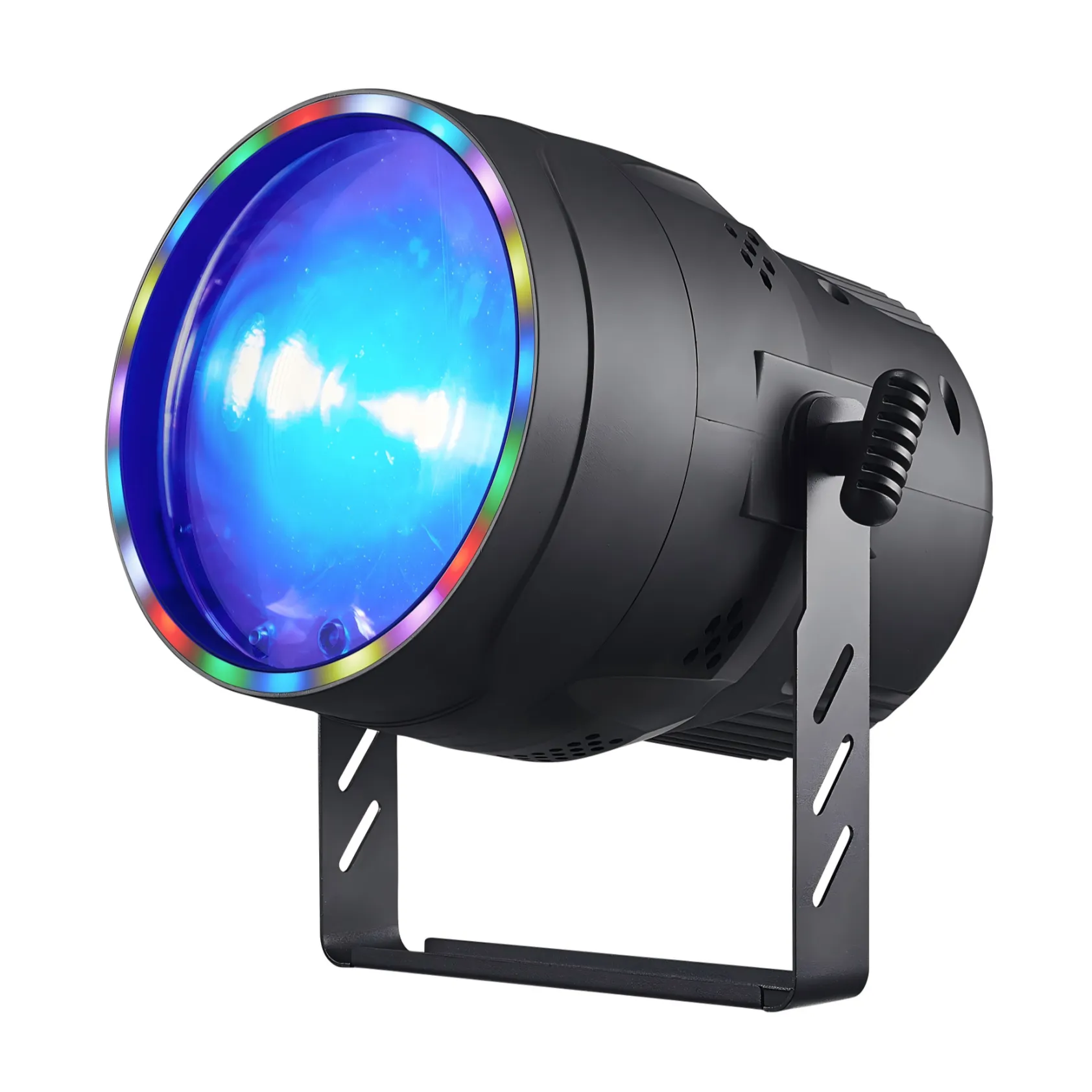

200W Zoomable Spotlight with CTO and Iris

The 200W Zoomable Front Light combines adjustable beam coverage, CTO effects, an iris, and decorative auxiliary lighting in a compact fixture. It is designed for buyers seeking a versatile light for stage illumination, presentations, and performance effects.

A high-brightness 200W LED provides the main output, while 37 auxiliary LEDs support pixel-mapping effects. The 10°–60° linear zoom allows operators to change from concentrated illumination to broader coverage.

With three DMX profiles, Master/Slave operation, and Sound-activated control, this fixture offers several operating choices for rental companies, venue operators, distributors, and installation contractors.

Adjustable 10°–60° Beam Coverage

The high-precision condenser lens assembly provides a linear zoom range from 10° to 60°. This lets operators adapt the beam to different performance areas and installation distances.

A narrower setting can emphasize a selected subject or stage position. A wider setting can cover a larger area during presentations or group performances.

Zoom flexibility is useful when equipment moves between venues. However, fixture spacing and throw distance should be planned using photometric data when a project requires defined illumination levels.

CTO Effects and Color-Temperature Options

The fixture is offered with 3200K, 5600K, or dual-color source options. Buyers can select the configuration that suits their existing lighting equipment and production requirements.

The listed CTO effect provides adjustable warming intensity. It can help operators develop warmer lighting looks, subject to the selected source version and control functions.

Source options and CTO operation should be confirmed separately. The supplied information does not establish that every version provides continuous adjustment between 3200K and 5600K.

Iris for Additional Beam Control

An iris is included in the product configuration. It provides another means of adjusting the illuminated opening alongside the zoom system.

This combination is relevant to productions that need changes in light coverage between scenes. Buyers should confirm the iris adjustment range and control method through the operating manual and DMX chart.

The available information does not specify framing shutters, so the fixture should not be treated as a shutter-equipped profile light.

Red, Green, and Blue Color Filters

Three color filters—red, green, and blue—provide additional color-wash options.

Operators can use selected colors to change the atmosphere, accent scenery, or support a performance cue. These filters extend the fixture’s role beyond white front lighting.

The filter system should be distinguished from an RGB LED mixing engine. Confirm filter selection, transitions, and any combination functions before programming a show.

37 Auxiliary LEDs with Pixel Effects

The 37 auxiliary LEDs add a decorative lighting layer around the main illumination. Their specified pixel-mapping capability gives designers additional effect options within the same fixture.

This is useful when the light remains visible as part of a stage arrangement. Several units can contribute to repeated visual patterns while the main sources serve the performance area.

Request the DMX chart to establish how the auxiliary LEDs are grouped and accessed. Detailed pixel functions may depend on the selected control profile.

Quiet Operation and Precision Drive

The fixture is specified for ultra-quiet operation, making it relevant to theaters, lecture halls, conference rooms, and quieter live performances.

A high-precision stepper motor supports the fixture’s motorized functions. Meanwhile, a constant-current driver regulates LED drive current.

For acoustically sensitive projects, request measured noise information and evaluate the fixture under representative operating conditions. The supplied information does not include a sound-pressure rating.

Three DMX Profiles and Standalone Control

Available channel modes are:

• 6CH

• 13CH

• 15CH

These profiles allow users to select a control footprint suited to their console and programming requirements. The channel chart defines access to zoom, CTO, iris, color filters, and auxiliary effects.

Master/Slave and Sound-activated modes are also listed. They provide alternatives for coordinated operation and music-responsive effects.

For branched installations, review Xingbo’s 8-channel optically isolated signal amplifier, which provides DMX signal distribution and amplification.

Technical Specifications

The 200W designation refers to the main LED source. The complete fixture has a listed rated consumption of 250W.

Applications for Commercial Projects

Potential applications include:

• Theater front lighting

• School auditorium performances

• Conference and presentation stages

• Hotel banquet events

• Live music venues

• Exhibition presentations

• Multipurpose halls

• Professional rental inventories

For wider project planning, explore Xingbo’s theater stage lighting solution.

Manufacturer and Procurement Support

Xingbo develops and manufactures stage-lighting equipment and supports OEM/ODM projects. Commercial buyers can discuss configuration, branding, and volume-order requirements with the manufacturer.

Before ordering, confirm the source version, CTO behavior, iris functions, auxiliary controls, connector types, and included mounting accessories. Also request photometric data, color-rendering measurements, applicable compliance documents, and warranty terms.

Frequently Asked Questions

What is the zoom range?
The fixture provides 10°–60° linear zoom.

Does every version offer adjustable color temperature?
Not necessarily. The listed choices are 3200K, 5600K, or dual-color. Confirm the selected version and CTO functions.

Does it include RGB color mixing?
Three red, green, and blue filters are listed. A full RGB mixing system is not specified.

What do the auxiliary LEDs provide?
The 37 auxiliary LEDs support pixel-mapping effects, with control details defined by the DMX profile.

Which DMX modes are available?
The fixture supports 6CH, 13CH, and 15CH.

Is outdoor use supported?
No protection rating is supplied. Confirm environmental suitability before specifying an outdoor installation.
