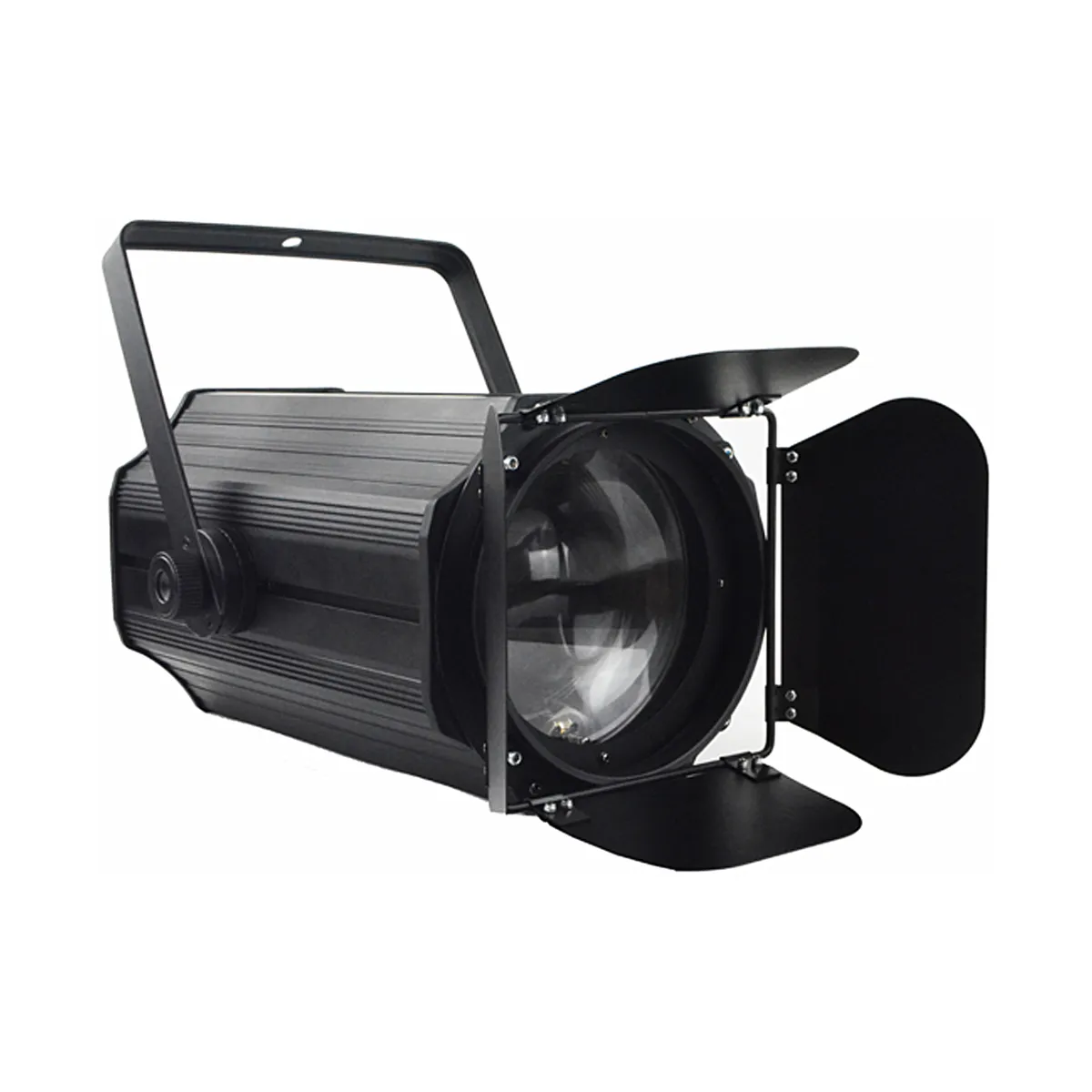

200W Manual Focus Spotlight

This 200W manual focus spotlight combines adjustable beam range with high color reproduction performance, suitable for theaters, studios, auditoriums, and presentation venues. Its manual optical adjustment provides a 15°–60° beam range, allowing technicians to adapt illumination to different subjects and stage areas.

A plano-convex condenser assembly works with a 175mm Fresnel lens. Meanwhile, Ra >95 and TLCI >97 make color quality a key consideration for buyers selecting equipment for live viewing and camera-based productions.

DMX control, RDM support, and 0–100% linear dimming provide practical integration options for permanent installations and professional rental inventories.

High Color Rendering for People and Scenery

The specified color-rendering index is Ra >95, with TLCI >97. These ratings are relevant when productions need to reproduce skin tones, costumes, products, and scenic colors accurately.

For theaters, consistent color presentation helps preserve the appearance of the production design. For studios and filmed presentations, the TLCI rating provides an additional reference for evaluating lighting performance on camera.

Project buyers should request test reports for the selected source configuration. Sample evaluation can then confirm how the fixture performs alongside existing lights and cameras.

Select the Appropriate Color Configuration

The available choices are listed as 3200K, 5600K, or full color.

A 3200K version suits projects requiring a warm-white source. A 5600K version provides a daylight-style white option. The full-color configuration gives buyers another choice for productions requiring colored illumination.

Confirm the exact version when ordering. The supplied information also lists a dual-color channel profile, so buyers requiring adjustable white output should verify its availability, adjustment range, and control functions.

The full-color emitter combination and DMX footprint should be confirmed separately.

Manual Beam Adjustment from 15° to 60°

Manual focus allows technicians to adjust the beam according to mounting distance and the area being illuminated.

A narrower setting concentrates coverage on a selected position. Conversely, a wider setting spreads light across a broader performance zone. This flexibility helps the fixture adapt to different layouts without changing to another model.

Manual adjustment is particularly practical when the lighting positions are prepared before an event and remain fixed during operation.

For complete venue planning, explore Xingbo’s theater stage lighting solution.

175mm Fresnel Optical System

The optical assembly combines a plano-convex condenser lens with a 175mm Fresnel lens. This configuration forms the fixture’s adjustable beam system.

When planning an installation, evaluate beam coverage together with throw distance and required illumination levels. Rated power and lens diameter alone do not establish the brightness reaching a subject.

Request photometric measurements or lighting files before preparing fixture spacing for a tender or permanent installation.

Linear Dimming and Compact DMX Profiles

The fixture supports 0–100% linear dimming. Operators can adjust brightness for rehearsals, presentations, performances, and scene transitions.

The supplied channel configurations are:

• Single-color version: 1 channel

• Dual-color version: 4 channels

These compact profiles limit DMX address use in multi-fixture systems. However, the channel assignments should be checked before creating console presets or fixture libraries.

For camera applications, verify performance at the intended dimming levels and shutter settings. The supplied specifications do not include a flicker-frequency or camera-compatibility claim.

RDM for Supported Remote Management

RDM enables two-way communication through compatible control equipment. It can simplify supported configuration tasks when fixtures are installed in positions that are difficult to reach.

Confirm the available RDM parameters in the operating manual. The console, signal distribution equipment, and connected fixtures must support the required communication path.

For branched networks, review Xingbo’s 8-channel optically isolated signal amplifier and verify RDM compatibility across the complete system.

Cold-Forged Heat Sink

The cooling system uses a high-purity cold-forged heat sink to conduct heat away from internal components.

Proper installation clearance remains important. Technicians should follow the manufacturer’s ventilation requirements and keep heat-dissipation surfaces clean.

The heat-sink specification does not establish whether the complete fixture is fanless. Request cooling-system details and measured noise data for acoustically sensitive venues.

Technical Specifications

Applications for Commercial Buyers

Potential applications include:

• Theater stage illumination

• Television and content-production studios

• School auditoriums

• Conference and presentation spaces

• Hotel banquet stages

• Exhibition and product displays

• Multipurpose performance halls

• Professional lighting rental inventories

The IP20 rating is intended for dry indoor use. Protect the fixture from rain, splashes, and condensation.

Project Procurement and Supply

Contact Xingbo with the required quantity, color configuration, throw distance, mounting layout, and control requirements.

For technical evaluation, request photometric data, color-rendering reports, DMX documentation, supported RDM functions, mounting instructions, applicable compliance documents, and warranty terms.

At 8kg per fixture, mounting plans should account for the complete supported load and approved installation accessories.

Frequently Asked Questions

Is focus adjustment motorized?
No. The specified focusing method is manual, with a 15°–60° beam range.

What lens does the fixture use?
It uses a plano-convex condenser assembly with a 175mm Fresnel lens.

Which color options are listed?
The supplied options are 3200K, 5600K, or full color. Confirm any dual-color configuration separately.

How many DMX channels are required?
The single-color version uses one channel, and the dual-color version uses four. The full-color profile must be confirmed.

Does it support RDM?
Yes. Available remote-management functions depend on the fixture implementation and compatible control equipment.

Is silent operation guaranteed?
No noise rating is supplied. Request measured acoustic performance if required.
