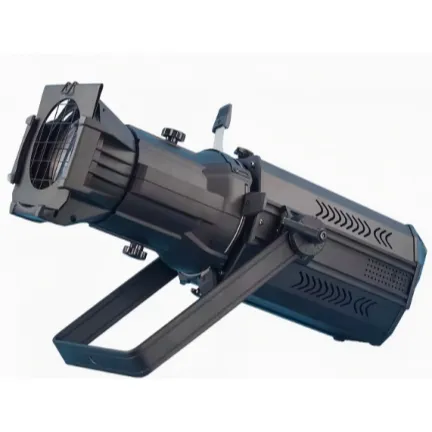

200W LED Profile Spot Light

This 200W LED Profile Spot is suitable for theaters, auditoriums, presentation stages, and professional event setups. A 200W COB LED pairs with a 19° optical system to deliver sharp edges and accurate shutter cuts.

Its multi-element, multi-coated lens design supports clear projection and controlled illumination. Meanwhile, high-resolution electronic dimming enables smooth fades for live shows and recorded productions.

Manual and DMX512 control make the fixture practical for permanent venues, rental companies, lighting distributors, and installation contractors.

Precise Shutter Cuts for Selective Lighting

A profile spotlight is ideal when light must stay within a defined area. This model delivers sharp shutter cuts, allowing technicians to shape the beam around a selected stage position, scenic element, or presentation area.

Careful framing helps reduce unwanted spill onto nearby surfaces. For example, operators can light a lectern while limiting light on an adjacent projection screen.

This control makes the fixture suitable for projects where beam placement matters as much as brightness.

Fixed 19° Lens with Multi-Coated Optics

The optical system uses multiple coated lens elements and a fixed 19° lens angle. Its design prioritizes clear light quality, crisp edges, and accurate beam shaping.

A fixed-angle profile ensures consistent optical coverage across installations using the same lens setup. However, the projected size still changes with throw distance.

The provided specs list a beam diameter of at least 3.0 meters but do not state the measurement distance. Buyers should request the corresponding throw distance and photometric data before calculating fixture positions.

For complete venue planning, explore Xingbo’s theater stage lighting solution.

200W COB LED Light Source

This fixture uses a 200W COB LED and has a rated power consumption of 220W. Keeping these figures separate helps buyers compare source specs and calculate installation loads correctly.

The stated light-source lifespan is at least 20,000 hours. Actual service life depends on operating temperature, ventilation, maintenance, and usage conditions.

For procurement comparisons, request measured illuminance at the intended throw distance. Source wattage alone does not reflect the brightness reaching the stage.

Specified 3200K–5500K Color Temperature

The listed color-temperature range is 3200K–5500K, covering warm white to cool white for different production needs.

Before ordering, confirm whether this range is adjustable or refers to available source configurations. Also, verify whether color-temperature functions are accessible through the selected DMX profile.

For filmed productions and projects requiring accurate skin tones, request CRI, TLCI, and color-consistency data. No numerical color-rendering values are provided in the current specs.

High-Resolution Electronic Dimming

Independent electronic linear dimming provides up to 65,535-step resolution. Fine brightness adjustment supports gradual transitions during slow fades and controlled scene changes.

This fixture is rated for flicker-free, jitter-free operation, making it suitable for recorded presentations, theater performances, and other settings where uneven brightness shifts can be distracting.

For high-frame-rate filming, test the light with the intended camera and shutter settings before production.

Manual and DMX512 Operation

Two dimming methods are available:

• Manual adjustment

• DMX512 control

Manual operation works well for simple setups or installations with a constant lighting level. DMX512 allows the spotlight to follow programmed cues within a larger lighting system.

This fixture supports 2-channel and 4-channel profiles. Request the full channel chart to confirm the functions assigned to each mode.

For systems with separate control branches, check out Xingbo’s 8-channel optically isolated signal amplifier.

Low-Noise Fan Cooling

This fixture uses a low-noise fan cooling system. This is especially important for spoken-word events, drama productions, lecture halls, and other acoustically sensitive spaces.

Cooling airflow helps manage heat during operation. Installers should keep ventilation paths clear and provide the spacing recommended by the manufacturer.

Note that the cooling system includes a fan; “silent” should not be interpreted as a verified zero-noise rating. Request measured sound-pressure data if acoustic performance is part of your project requirements.

Technical Specifications

Applications for Commercial Projects

This fixture is suitable for a range of commercial applications, including:

• Theater acting-area lighting

• Auditorium front lighting

• Lectern and speaker illumination

• Corporate presentation stages

• Museum and exhibition accents

• School performance halls

• Filmed event productions

• Professional lighting rental inventories

The IP20 rating is intended for dry indoor use. Protect the fixture from rain, splashes, and condensation.

Manufacturer and Bulk-Order Support

Get in touch with Xingbo for your required quantity, stage dimensions, mounting positions, throw distances, and control needs.

Before placing a bulk order, request photometric files, shutter demos, color-temperature confirmation, acoustic measurements, mounting instructions, compliance documents, and warranty terms.

At 8.7kg per fixture, installation plans should account for the full supported load, including mounting accessories and safety attachments.

Frequently Asked Questions

Does the fixture have optical zoom?
The provided specs list a fixed 19° lens. No zoom function is included.

Can the beam be shaped?
Yes. The optical system supports sharp shutter cuts for precise beam framing.

What is the difference between 200W and 220W?
The main COB source is rated at 200W, while the full fixture has a rated power consumption of 220W.

Can brightness be adjusted without DMX?
Yes. Manual dimming is supported.

Which DMX profiles are available?
This fixture supports 2CH and 4CH.

At what distance does it produce a 3-meter beam?
The measurement distance is not provided. Request the photometric data before planning coverage.

Request a Wholesale Quotation

Send us your quantity, preferred color-temperature configuration, throw distance, plug requirements, and delivery destination. We can also provide details on sample availability, packaging options, branding requirements, and production lead times.
