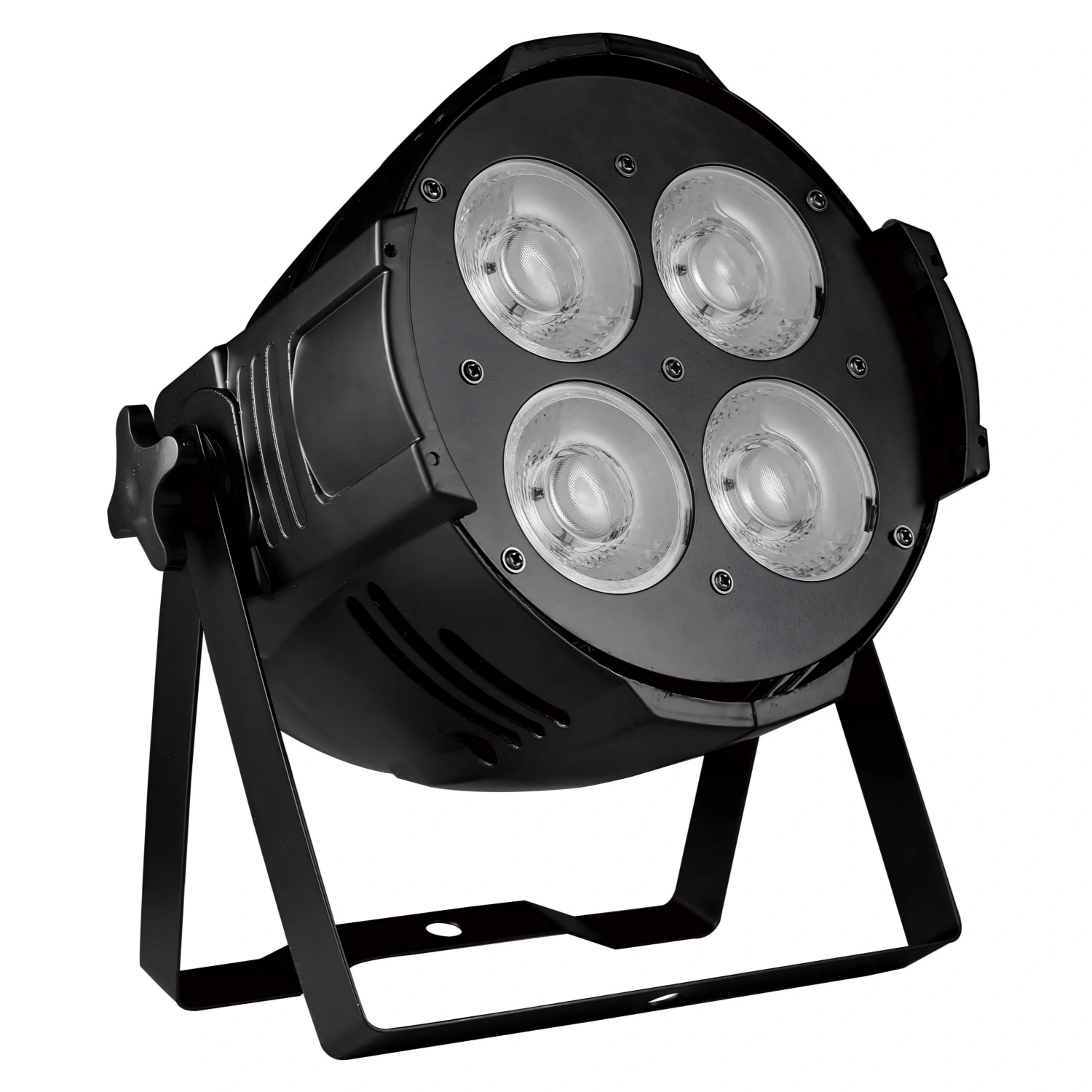

200W Four-Eye Surface Light

The 200W Four-Eye Surface Light combines four 50W LED sources with warm-white and pure-white output for professional stage and event applications. Its four-eye arrangement provides a distinctive visual appearance, while 25° optical-grade lenses direct the light toward the selected area.

The fixture offers 3200K warm white and 5600K pure white, supported by built-in macro functions. Independent electronic dimming and several strobe patterns allow operators to move between steady illumination and dynamic performance effects.

With a rated fixture consumption of 230W, two DMX profiles, and multiple standalone modes, this model suits lighting distributors, rental companies, venue operators, and installation contractors.

Warm White and Pure White Output

The white-light system provides two specified color temperatures:

• 3200K warm white for warmer stage scenes and atmospheric event lighting

• 5600K pure white for a cooler visual appearance and daylight-style scenes

These options help operators adapt the fixture to different performance looks. Built-in macros provide additional programmed functions, with exact behavior defined by the operating manual.

For productions requiring measured color accuracy, request color-rendering data and output measurements. A continuous color-temperature adjustment range is not established by the supplied specifications.

Four 50W Sources with 25° Optics

The fixture uses a four-source LED system rated at 4 × 50W. Optical-grade 25° lenses provide defined coverage for stage accents and selected performance areas.

The stated design emphasizes luminous efficiency and uniform light mixing. This makes the fixture relevant to projects requiring consistent white-light effects from a compact unit.

Actual coverage depends on mounting distance and aiming position. Photometric data should be used when calculating illumination levels or fixture spacing.

Independent Linear Dimming for Smooth Transitions

Independent electronic dimming adjusts output from 0% to 100%. Operators can create gradual fades, balance the light with other fixtures, or lower intensity during quieter performance segments.

The specified flicker-free operation supports video recording. This is useful for filmed events, streamed performances, and corporate presentations where both the live audience and camera view matter.

For high-frame-rate recording, evaluate the fixture with the intended camera and shutter settings during production preparation.

Multiple Electronic Strobe Effects

The independent electronic strobe system operates from 0 to 25 flashes per second and supports:

• Random strobe

• Pulse strobe

• Synchronous strobe

• Asynchronous strobe

• Single-color-temperature strobe

These options give programmers several ways to emphasize musical cues and scene transitions. For example, synchronized flashes can produce a unified effect, while asynchronous operation introduces visual variation.

The DMX chart defines access to each strobe function and its relationship to the white-light sources.

Two DMX Profiles

The available control configurations are:

• Mode A: 7CH

• Mode B: 8CH

Both profiles provide a compact DMX footprint for multi-fixture installations. Operators should select the corresponding console profile and verify the channel assignments before programming.

For systems requiring separate control branches, review Xingbo’s 8-channel optically isolated signal amplifier and confirm the planned signal layout.

Flexible Operating Modes

The fixture supports DMX512, Sound-activated operation, Built-in program mode, Auto-run, and Master-Slave connection.

DMX512 integrates the light into programmed productions. Built-in programs and Auto-run support operation without continuous console input. Meanwhile, Sound-activated mode responds to music.

Master-Slave connection coordinates matching units under one primary fixture. Consequently, buyers can select a workflow suited to their technical team and event requirements.

Die-Cast Aluminum Construction

The all-die-cast aluminum housing provides a solid enclosure for professional handling. At 27 × 23 × 31cm and 3.2kg, the fixture is practical for transport, storage, and repeated event deployment.

The supplied package lists one-meter power and signal cables, with input/output connectivity. Confirm the connector types and exact cable contents when ordering accessories or preparing rental kits.

Its IP20 rating is intended for dry indoor environments. Keep the fixture protected from rain, splashes, and condensation.

Technical Specifications

The 200W designation corresponds to the combined LED source rating. The listed rated electrical consumption of the complete fixture is 230W.

Commercial Applications

Potential applications include:

• Live music stages

• Indoor performance venues

• Corporate presentations

• Hotel banquet stages

• Theater effect lighting

• Filmed and streamed events

• DJ productions

• Professional lighting rental inventories

For wider venue planning, explore Xingbo’s bar entertainment lighting solution.

B2B Purchasing and Technical Support

Contact Xingbo with your quantity, destination market, installation plan, and control requirements.

Before volume purchasing, request the DMX chart, photometric data, color-rendering measurements, mounting instructions, applicable compliance documents, and warranty terms. Sample evaluation can confirm white-light appearance, dimming response, strobe functions, and recording performance.

Frequently Asked Questions

Why is the product named 200W when rated power is 230W?
The four 50W sources total 200W. The complete fixture has a listed electrical rating of 230W.

Which white color temperatures are available?
The specified outputs are 3200K warm white and 5600K pure white.

Is it suitable for video recording?
Yes. Flicker-free recording performance is specified. Test the intended camera settings before a production.

Which DMX modes are included?
Mode A uses seven channels, and Mode B uses eight.

Can it operate without a console?
Yes. Built-in programs, Auto-run, Sound-activated operation, and Master-Slave connection are available.

Can it be used outdoors?
The standard IP20 fixture is intended for dry indoor installations.

Request a Wholesale Quotation

Send your required quantity, preferred DMX profile, plug requirements, and delivery destination. Request sample availability, packaging options, branding requirements, and production lead times.
