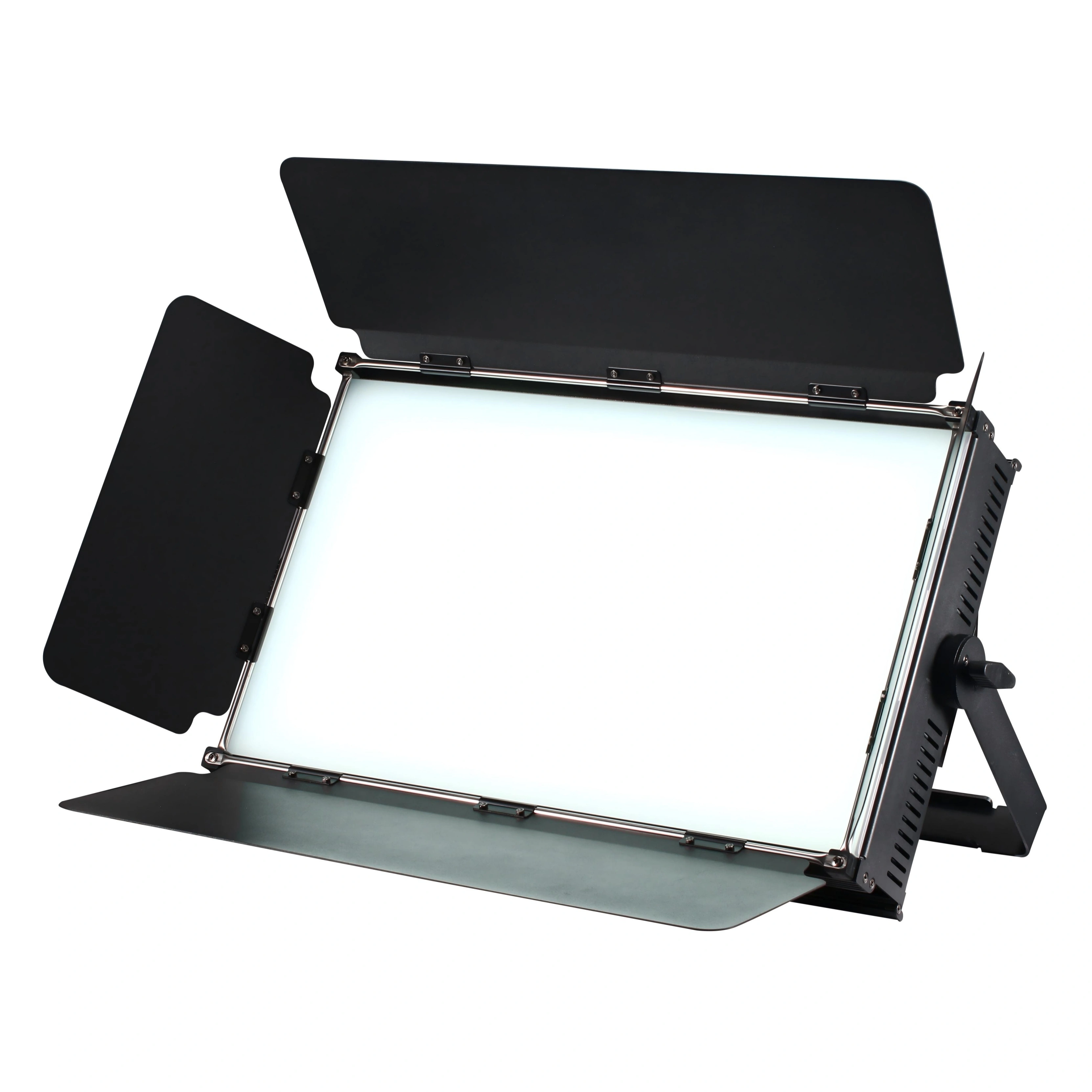

1820-LED Tri-color Flat Panel Conference Light

Input Voltage: AC 100-240V, 50-60Hz
Switching Power Supply: High-efficiency 350W, PFC 93%
Rated Power: Max 270W (natural cooling); 450W (forced air cooling)
Light Source Specs: SMD2835 (0.5W per unit); Quantity: 1820 LEDs
Color Temperature System: 3200K / 5600K / Bi-color (selectable)
Color Rendering Index: Ra ≥ 97; TLCI ≥ 95
TM-30-18 Data: 3200K (Rf=96, Rg=102); 4200K (Rf=95, Rg=103); 5600K (Rf=95, Rg=103)
3200K Illuminance Data: 1m: 5700 lux; 2m: 1750 lux; 3m: 850 lux; 4m: 529 lux; 5m: 347 lux; 6m: 250 lux; 7m: 198 lux; 8m: 149 lux
4200K Illuminance Data: 1m: 5000 lux; 2m: 1900 lux; 3m: 930 lux; 4m: 570 lux; 5m: 360 lux; 6m: 277 lux; 7m: 209 lux; 8m: 152 lux
5600K Illuminance Data: 1m: 7660 lux; 2m: 2390 lux; 3m: 1170 lux; 4m: 690 lux; 5m: 440 lux; 6m: 330 lux; 7m: 248 lux; 8m: 187 lux
Optical System: PC-grade soft-light panel with anti-yellowing treatment. Cooling System: Aviation-grade aluminum profile; longitudinally mounted heatsink with thermally conductive surface coating
Beam Angle: 120°
Dimming System: 0–100% linear adjustment
Control Protocols: DMX512, RDM
Channel Count: Single-color (1CH); Bi-color (2CH, 4CH, 6CH)
Display: 2.2-inch color LCD screen
Timing Function: Real-time display of light source operating time
Ingress Protection: IP20
Lifespan: 50,000 hours
Product Weight: 15 kg
Fixture Dimensions: L535 x W330 x H91 mm
